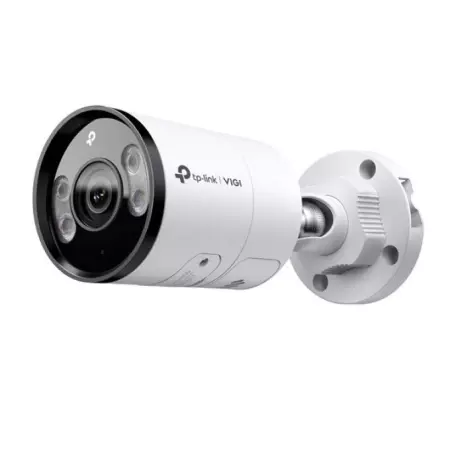

TP-LINK IP Kamera kültéri színes éjjellátó 8 Megapixel, 4mm Objektív, INSIGHT S385(4MM)

Kamera Képérzékelő 1/2.7” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Min. szükséges megvilágítás 0.005 Lux; 0 Lux with IR/White light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Fixed Focal Lens Focal Length 2.8/4 mm Aperture F1.6 FOV • 2.8 mm:Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°• 4 mm:Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° Lens Mount M12*P 0.5 DORI Distance • 2.8 mmDetect: 85 m (278 ft)Observe: 35 m (116 ft)Recognize: 17 m (56 ft)Identify: 8 m (28 ft)• 4 mmDetect: 107 m (350 ft)Observe: 44 m (146 ft)Recognize: 21 m (70 ft)Identify: 11 m (35 ft) Angle Adjustment (Manual) Range Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° ILLUMINATOR IR LED • Quantity: 2• Range: 30m• Wavelength: 850nm White LED • Quantity: 2• Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 3840 X 2160 Main Stream • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution:3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080,1280×720• Note:If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If 120dB is turned on, the frame rate can only support up to 20fps. Sub-Stream • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution:848×480, 704×576, 640×480, 640×360, 352×288, 320×240• Note:If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If 120dB is turned on, the frame rate can only support up to 20fps. Bit Rate Control CBR, VBR Video Compression • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile* H.265+ Main Stream Supported* Video Bit Rate • Main Stream: 256 Kbps to 8 Mbps• Sub-Stream: 64 Kbps to 512 Kbps Image Image Settings • Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range 120 dBNote: When People & Vehicle Analytics is enabled, only DWDR is supported. SNR ? 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes Hang Hangkommunikáció Two-Way Audio Hangbemenet Yes Hangkimenet Yes Hangtömörítés Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) Hálózat Szabvány TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF Yes API ONVIF (Profile S/T/G) Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS,VIGI Cloud VMS Web Browser • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above Cloud Yes Biztonság Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Figyelmeztetési és eseménykezelési vezérlés Smart Event • Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login) Alarm Linkage • Memory Card Video Recording• Message Push• Audible Warning• White Light Flashing Linkage Method N/A Output Notification Message Push Deep Learning Function People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§ Fizikai kezelőfelület Hálózati csatlakozás 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE Alarm N/A Reset Button Yes Power DC Power Port On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker Yes Audio N/A Általános Operating Temperature -30–60 °C Storage Temperature -40–60 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Csomagolás tartalma • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories Material Metal Net Weight 0.525 Kg Power Supply • 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 11.5 W Protection IP67 Product Dimensions (L x W x H) 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm) Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
