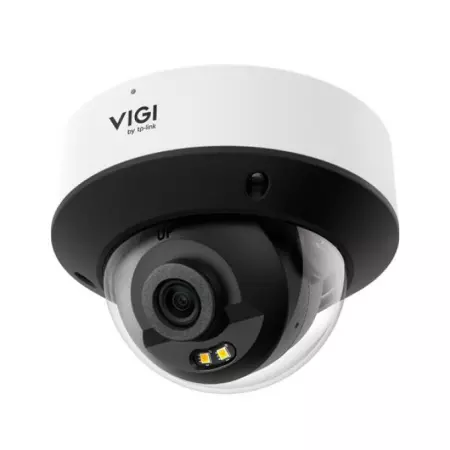

TP-LINK IP Kamera kültéri színes éjjellátó 2 Megapixel, 2.8mm Objektív, INSIGHT S225(2.8MM)

CAMERA Image Sensor 1/3” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Minimum Illumination 0.005 Lux; 0 Lux with IR/White light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Fixed Focal Lens Focal Length 2.8 mm / 4 mm Aperture F2.0 FOV • 2.8 mm: Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117° • 4 mm: Horizontal : 75.2°, Vertical: 40.8°, Diagonal: 88.3° Lens Mount M12 DORI Distance • 2.8 mm Detect: 153 ft (47 m) Observe: 64 ft (19 m) Recognize: 31 ft (9 m) Identify: 15 ft (5 m) • 4 mm Detect: 194 ft (59 m) Observe: 81 ft (25 m) Recognize: 39 ft (12 m) Identify: 19 ft (6 m) Angle Adjustment (Manual) Range Pan: 0° to 353.5°, Tilt: 0° to 75°, Rotate: 0° to 355° ILLUMINATOR Illuminator On/Off Control Auto/Scheduled/Always on/Always off Integrated Infrared-White LED • Quantity: 2 • IR Range: 98 ft (30 m)*3 • White LED Range: 98 ft (30 m)*3 • IR Wavelength: 850 nm VIDEO Max. Resolution 1920×1080 Main Stream • Frame Rate: 50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 1920×1080, 1280×960, 1280×720 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps. Sub-Stream • Frame Rate: 50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848×480,704×576, 640×480, 640×360,352×288, 320×240 • Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate • Main Stream: 256 Kbps to 4 Mbps • Sub-Stream: 64 Kbps to 512 Kbps Image Image Settings • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/Smart IR Wide Dynamic Range DWDR SNR ≥ 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes AUDIO Audio Communication N/A Audio Input Yes Audio Output N/A Audio Compression Yes Audio Sampling Rate 8 KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) NETWORK Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS ONVIF Yes API Open Network Video Interface (Profile S/T) Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI APP, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool Web Browser • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above Cloud Yes Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication ALARM AND EVENT MANAGEMENT Smart Event • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • People Detection • Vehicle Detection Basic Event • Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts) • Camera Tampering • Exception (Illegal Login) Alarm Linkage • Upload to FTP server • Push Notifications • Send to Alarm Server • Email Alarm INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE Alarm N/A Reset Button N/A Power DC Power Port On-board Storage N/A Built-in Microphone Yes; Records Anything Going on within a 15 ft (4.6 m) Radius of the Camera Built-in Speaker N/A Audio N/A GENERAL Operating Temperature -30 °C to 60 °C Storage Temperature -40 °C to 60 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Package Content • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories Material Metal Net Weight 0.5 Kg Power Supply • 12V DC ± 5%, Max. 6.3 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 6.7 W Protection IP67 Waterproof, IK10 Vandal Proof Product Dimensions (L x W x H) O4.5 × 3.4 in (O113.5 × 85.7mm) Certifications CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
